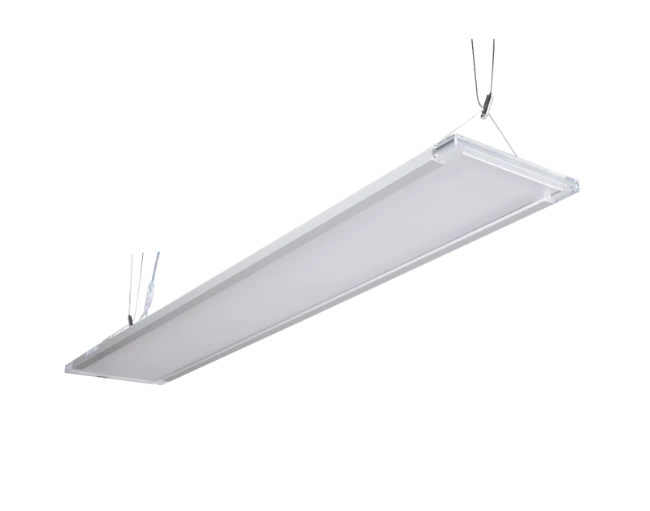

Panel Suspended Zenith

LEDPanelSp-Z L1222-75W-DALI-4000-AL

Product Code
140054054
  • Special design luminaire distributes light both up and down, combining comfort and efficiency
  • Light up your offices and meeting rooms in an architectural way
  • Standard including suspension kit (2.5m) and separate aluminum colored driver housing

Specifications

Electrical data

Voltage type AC/DC
Nominal voltage 220|240 V
Power factor 0.9
Max. number of luminaires per miniature circuit breaker B16 (MCB) 18
Max. number of luminaires per miniature circuit breaker C16 (MCB) 30
Max. inrush current 35 A
Inrush time 500
Max. number of luminaires per miniature circuit breaker C10 (MCB) 18
Max. number of luminaires per miniature circuit breaker C13 (MCB) 24
Nominal voltage DC 180|280 V
Frequency 50|60 Hz

Photometrical data

Colour consistency (SDCM) 3
CIE Flux Code 46 77 94 48 100

Lifespan

Lifetime (L70) 60000 h
Lifetime (L80) 40000 h
On-/Off-cycles 100000

Certificates and standards

Protection class II
Degree of protection (IP) IP20
Impact strength IK02
Glow wire test 650°C
Risk group (EN 62471) RG0
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 1%
Input current 0.33 A
Housing colour Aluminium
Reflector Other
Optical material PMMA
Cover material Semi-opaque PMMA
Height/depth 19 mm
Application temperature 25°C
Storage environment -25|50°C
Operating temperature -20|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
0695632187708894051190CT11.555 x 0.275 x 0.055 m5.183 KG
